CEER117-AX05-15-007
  • Share:

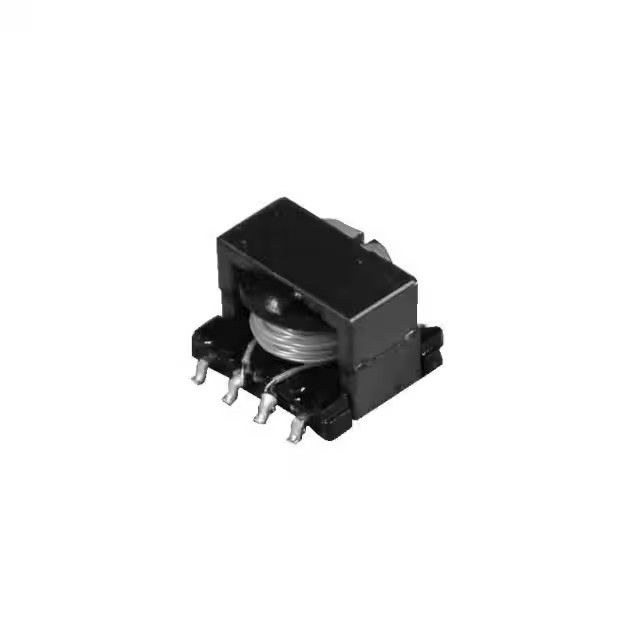

Sumida America Components Inc. CEER117-AX05-15-007

Manufacturer No:
CEER117-AX05-15-007
Manufacturer:
Sumida America Components Inc.
Package:
Tape & Reel (TR)
Datasheet:
CEER117-AX05-15-007 Datasheet
ECAD Model:
-
Description:
FLYBACK TRANSFORMER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV
Chipset Manufacturer:Broadcom, ROHM
Voltage - Primary:12V
Voltage - Auxiliary:5V @ 50mA
Voltage - Isolation:2500Vrms
Inductance @ Frequency:7.2µH @ 100kHz, 13.8µH @ 100kHz, 120µH @ 100kHz
Frequency:400kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.449" L x 0.390" W (11.40mm x 9.90mm)
Height - Seated (Max):0.331" (8.40mm)
Footprint:0.508" L x 0.449" W (12.90mm x 11.40mm)
Style:-
0 Remaining View Similar

In Stock

$5.26
164

Please send RFQ , we will respond immediately.
