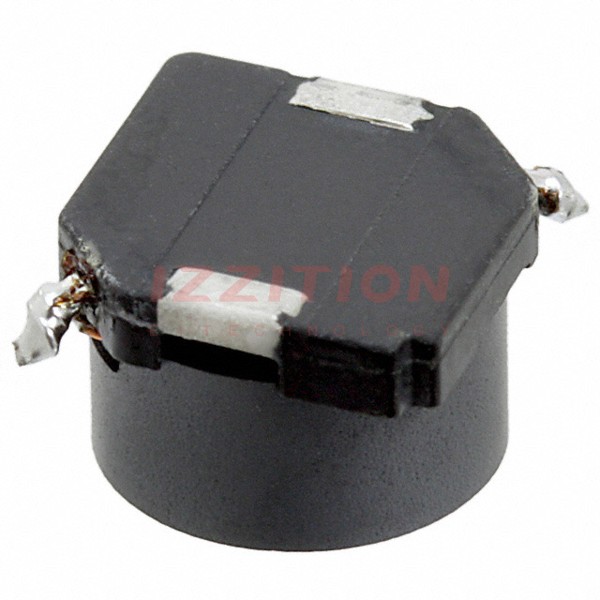

| Part Number | CDRR75NP-681MC | CDRR75NP-680MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 680 µH | 68 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 310 mA | 930 mA |
| Current - Saturation (Isat) | 160mA | 530mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.866Ohm Max | 256mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.272" L x 0.272" W (6.90mm x 6.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
