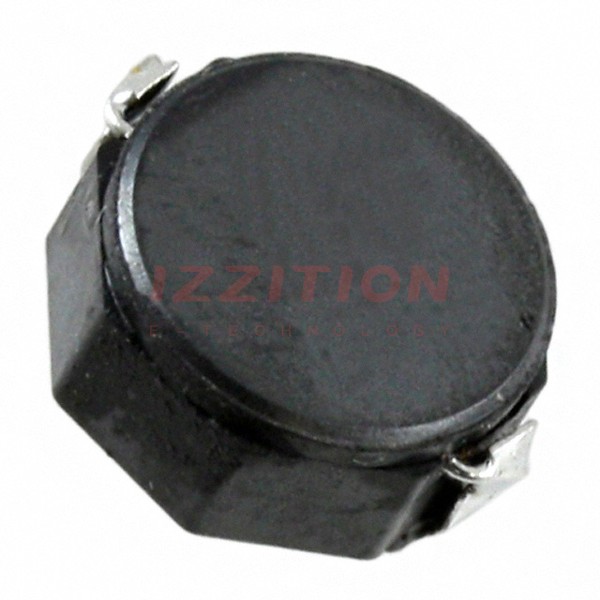

| Part Number | CDRH8D38NP-220NC | CDRH8D28NP-220NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2 A | 1.85 A |
| Current - Saturation (Isat) | 2.3A | 1.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 105mOhm Max | 99mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.118" (3.00mm) |
