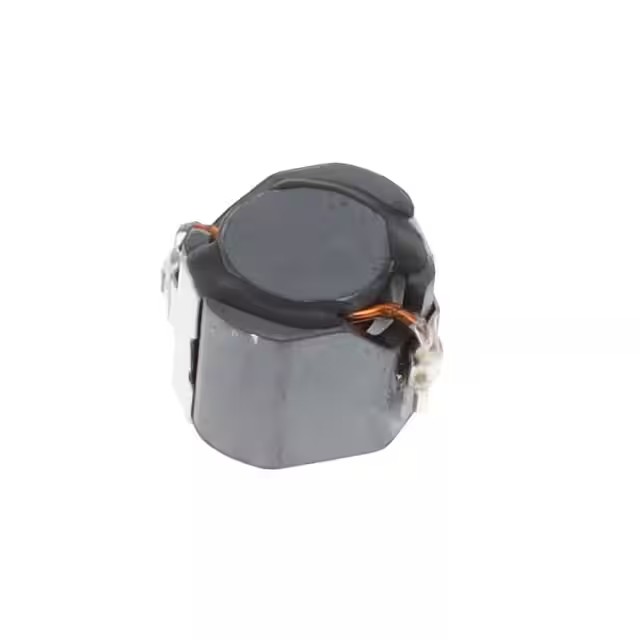

| Part Number | CDRH80D65BT150NP-3R3NC | CDRH80D65BT150NP-3R9NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.9 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 6.35 A | 6.1 A |
| Current - Saturation (Isat) | 7.65A | 7.05A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 10.8mOhm | 11.8mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.339" L x 0.323" W (8.60mm x 8.20mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) |
