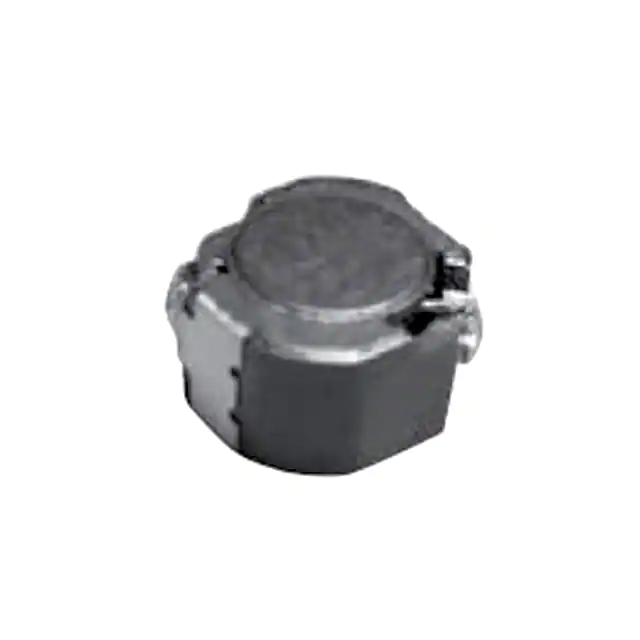

| Part Number | CDRH70D45BT150NP-2R2NC | CDRH70D45BT150NP-1R2NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.2 µH | 1.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 7.6 A | 8.7 A |
| Current - Saturation (Isat) | 6.2A | 8.4A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 10mOhm | 8mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.303" L x 0.287" W (7.70mm x 7.30mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
