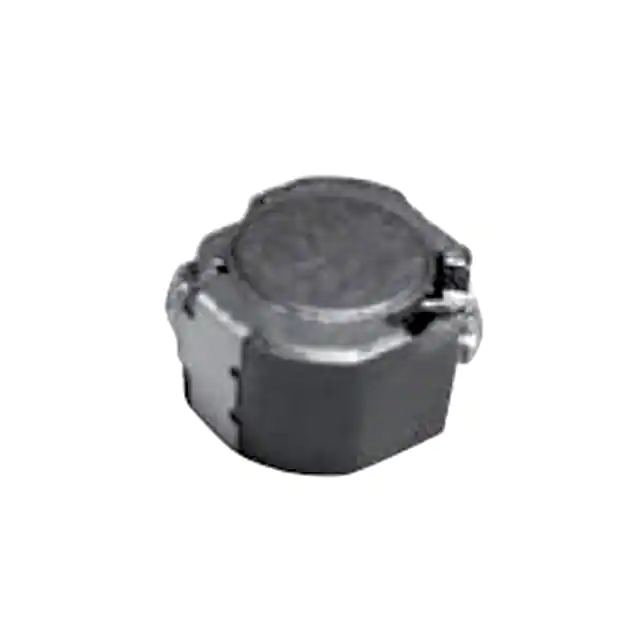

| Part Number | CDRH70D45BT150NP-220MC | CDRH70D45BT150NP-221MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 22 µH | 220 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.6 A | 910 mA |
| Current - Saturation (Isat) | 2A | 620mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 69mOhm | 550mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.303" L x 0.287" W (7.70mm x 7.30mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
