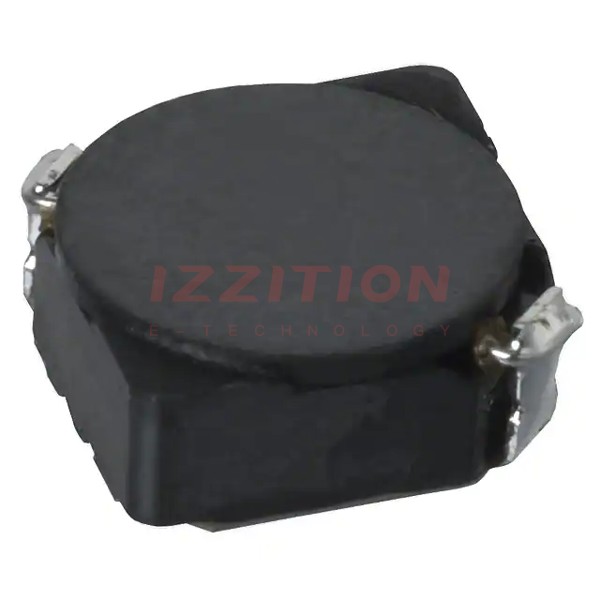

| Part Number | CDRH6D38NP-120NC | CDRH6D38NP-180NC | CDRH6D38NP-150NC | CDRH6D38NP-220NC | CDRH6D38NP-820NC | CDRH6D28NP-120NC | CDRH6D38NP-100NC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 18 µH | 15 µH | 22 µH | 82 µH | 12 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.7 A | 1.5 A | 1.6 A | 1.3 A | 700 mA | 1.55 A | 2 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 53mOhm Max | 92mOhm Max | 57mOhm Max | 96mOhm Max | 324mOhm Max | 70mOhm Max | 38mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.118" (3.00mm) | 0.157" (4.00mm) |
