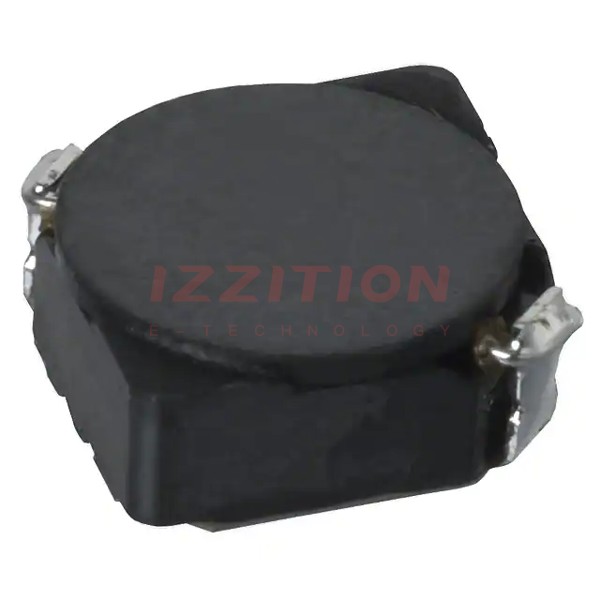

| Part Number | CDRH6D28-3R9NC | CDRH6D28-3R0NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.9 µH | 3 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.6 A | 3 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 27mOhm Max | 24mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
