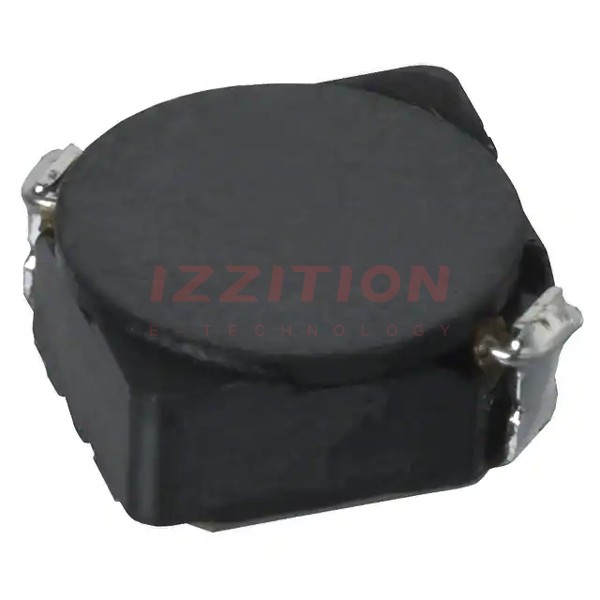

| Part Number | CDRH6D28-120NC | CDRH6D28-150NC | CDRH6D28-180NC | CDRH6D28-220NC | CDRH6D28-820NC | CDRH6D38-120NC | CDRH6D28-100NC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 15 µH | 18 µH | 22 µH | 82 µH | 12 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.55 A | 1.4 A | 1.32 A | 1.2 A | 600 mA | 1.7 A | 1.7 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 70mOhm Max | 84mOhm Max | 95mOhm Max | 128mOhm Max | 390mOhm Max | 53mOhm Max | 65mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.157" (4.00mm) | 0.118" (3.00mm) |
