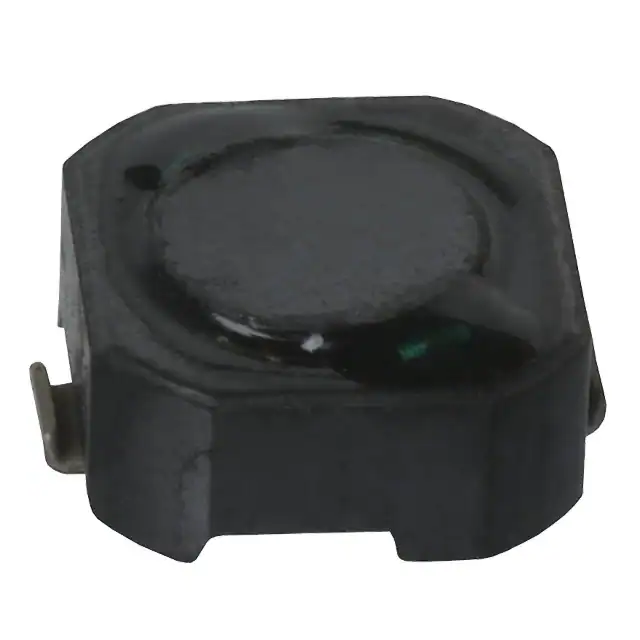

| Part Number | CDRH62BNP-120MC-B | CDRH62BNP-220MC-B | CDRH62BNP-121MC-B | CDRH62BNP-150MC-B | CDRH62BNP-180MC-B | CDRH62BNP-820MC-B | CDRH64BNP-120MC-B | CDRH62BNP-100MC-B |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 22 µH | 120 µH | 15 µH | 18 µH | 82 µH | 12 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1 A | 740 mA | 310 mA | 900 mA | 800 mA | 380 mA | 1.2 A | 1.1 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 200mOhm Max | 340mOhm Max | 1.9Ohm Max | 230mOhm Max | 270mOhm Max | 1.21Ohm Max | 130mOhm Max | 150mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.260" L x 0.244" W (6.60mm x 6.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.197" (5.00mm) | 0.118" (3.00mm) |
