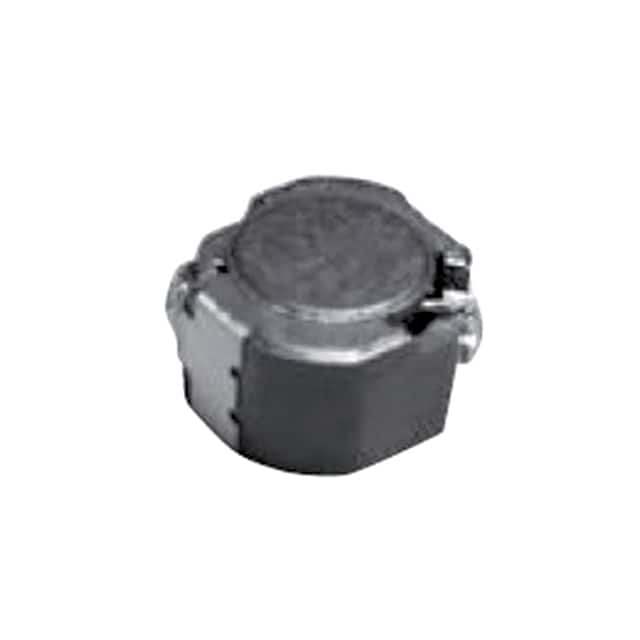

| Part Number | CDRH60D45BT150NP-151MC | CDRH60D45BT150NP-101MC | CDRH60D45BT150NP-150MC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 150 µH | 100 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 720 mA | 860 mA | 2 A |
| Current - Saturation (Isat) | 740mA | 900mA | 2.3A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 576mOhm | 340mOhm | 76.8mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.260" L x 0.248" W (6.60mm x 6.30mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
