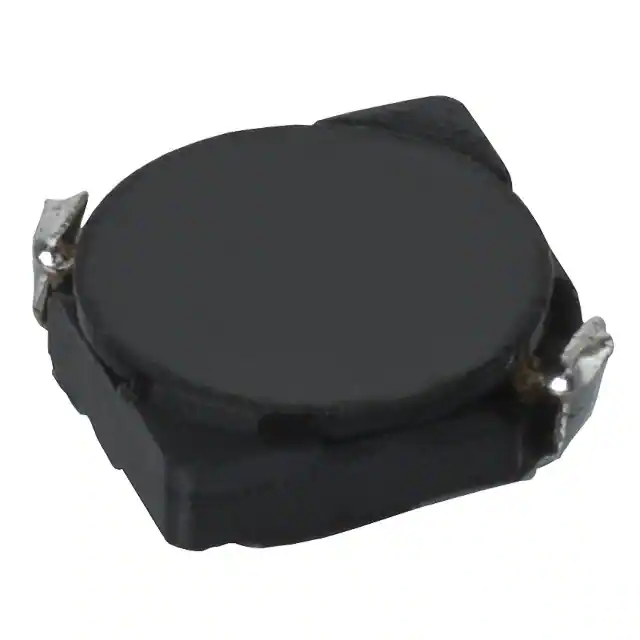

| Part Number | CDRH5D28-270NC | CDRH5D28-470NC | CDRH5D28-220NC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 27 µH | 47 µH | 22 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 850 mA | 620 mA | 900 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 175mOhm Max | 250mOhm Max | 122mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
