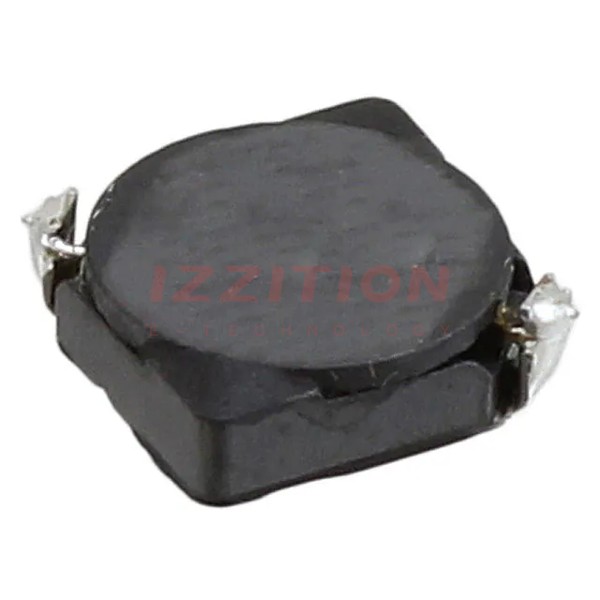

| Part Number | CDRH5D18NP-120NC | CDRH5D18NP-220NC | CDRH5D18NP-150NC | CDRH5D18NP-820NC | CDRH5D18NP-180NC | CDRH5D28NP-120NC | CDRH5D14NP-120NC | CDRH5D18NP-100NC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | - | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | - |
| Inductance | 12 µH | 22 µH | 15 µH | 82 µH | 18 µH | 12 µH | 12 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.1 A | 800 mA | 970 mA | 410 mA | 850 mA | 1.2 A | 1.1 A | 1.2 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | 920mA | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 153mOhm Max | 290mOhm Max | 196mOhm Max | 978mOhm Max | 210mOhm Max | 76mOhm Max | 210mOhm Max | 124mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 125°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 105°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz | 100 kHz | 10 kHz | 10 kHz | 10 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.240" L x 0.228" W (6.10mm x 5.80mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.059" (1.50mm) | 0.079" (2.00mm) |
