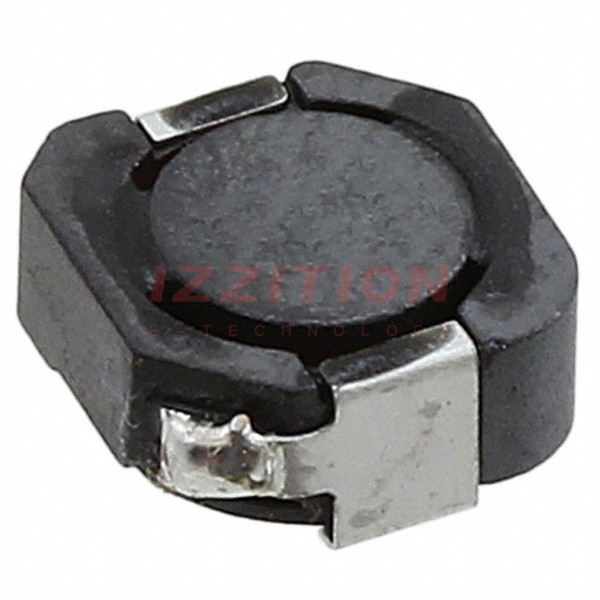

| Part Number | CDRH5D14NP-6R8NC | CDRH5D16NP-6R8NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±25% |
| Current Rating (Amps) | 1.5 A | 1.7 A |
| Current - Saturation (Isat) | 1.3A | 1.8A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 110mOhm Max | 84.3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.240" L x 0.228" W (6.10mm x 5.80mm) | 0.220" L x 0.220" W (5.60mm x 5.60mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.071" (1.80mm) |
