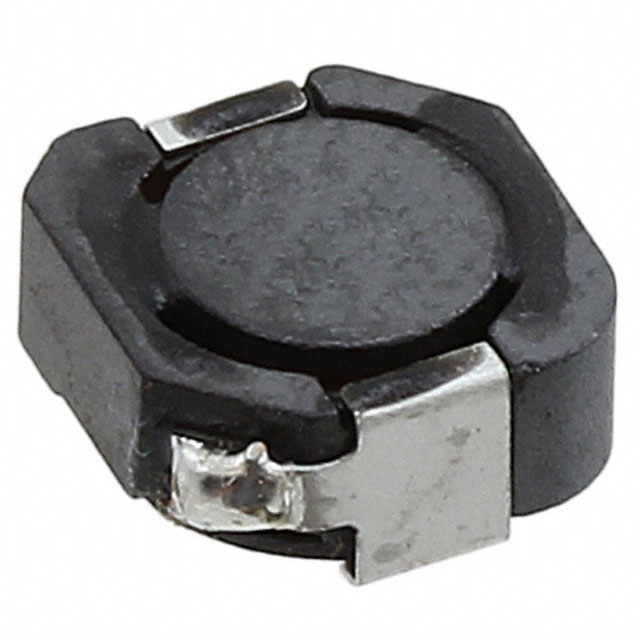

| Part Number | CDRH5D14NP-120NC | CDRH5D18NP-120NC | CDRH5D14NP-1R0NC | CDRH5D14NP-100NC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 12 µH | 1 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.1 A | 1.1 A | 3.6 A | 1.3 A |
| Current - Saturation (Isat) | 920mA | - | 3.3A | 1.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 210mOhm Max | 153mOhm Max | 25.6mOhm Max | 148mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 100°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 10 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.240" L x 0.228" W (6.10mm x 5.80mm) | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.240" L x 0.228" W (6.10mm x 5.80mm) | 0.240" L x 0.228" W (6.10mm x 5.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.079" (2.00mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
