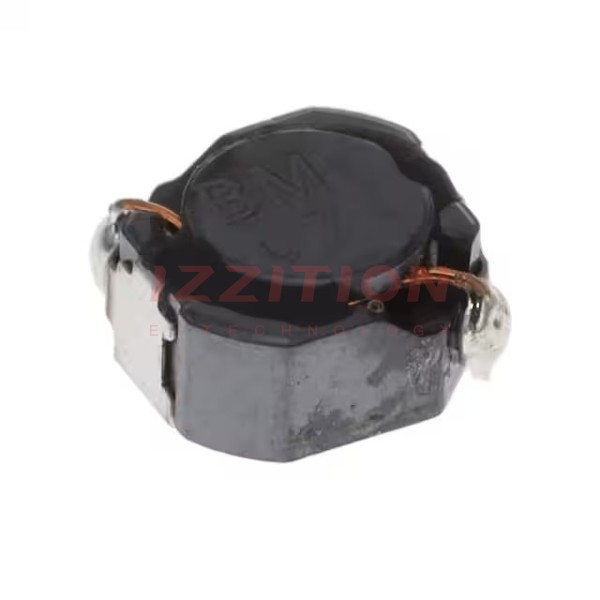

| Part Number | CDRH50D28BT150NP-1R5NC | CDRH50D28BT150NP-1R0NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 3.4 A | 3.6 A |
| Current - Saturation (Isat) | 5.5A | 5.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 20mOhm | 18mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
