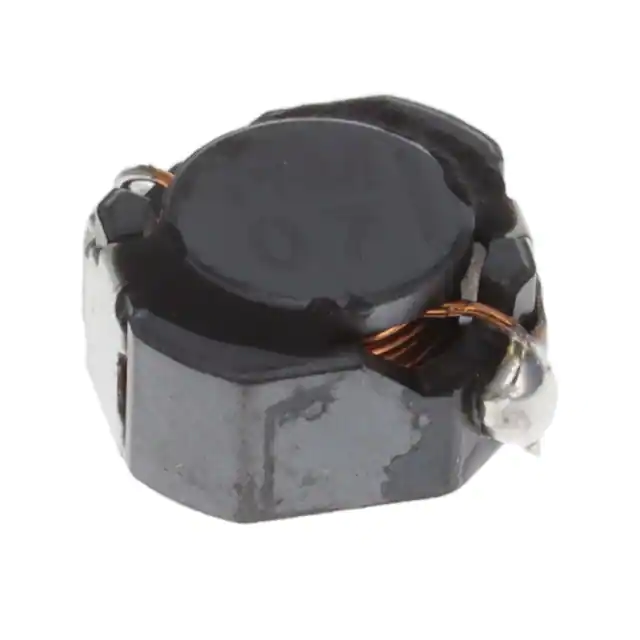

| Part Number | CDRH50D28BT150NP-150MC | CDRH50D28BT150NP-100MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.38 A | 1.75 A |
| Current - Saturation (Isat) | 1.4A | 1.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 130mOhm | 95mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
