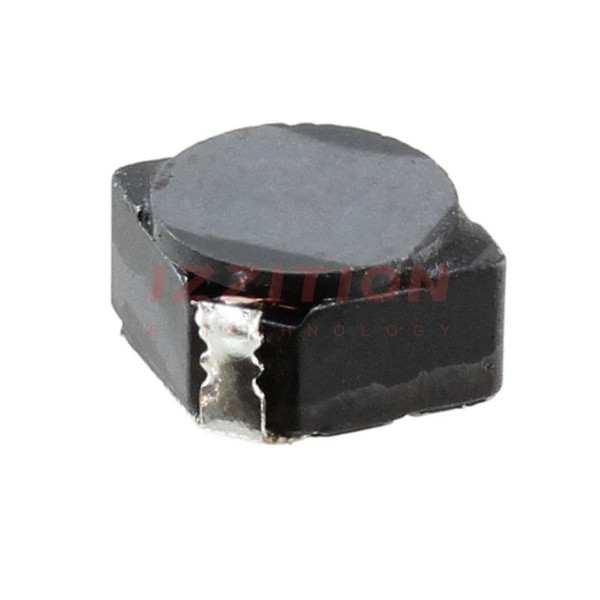

| Part Number | CDRH4D28NP-6R8NC | CDRH4D22NP-6R8NC | CDRH4D28NP-1R8NC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH | 1.8 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.12 A | 1.95 A | 2.2 A |
| Current - Saturation (Isat) | - | 1A | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 108.9mOhm Max | 88mOhm Max | 27.5mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.094" (2.40mm) | 0.118" (3.00mm) |
