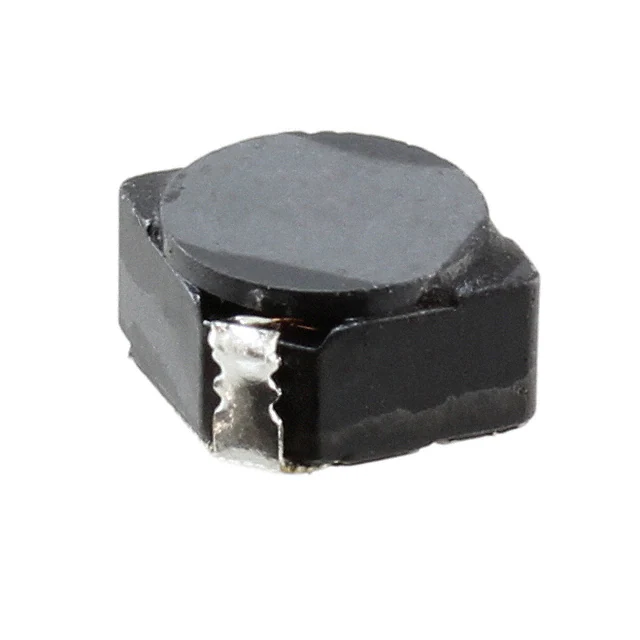

| Part Number | CDRH4D28NP-120NC | CDRH4D28NP-220NC | CDRH4D28NP-121NC | CDRH4D28NP-150NC | CDRH4D28NP-820NC | CDRH4D28NP-180NC | CDRH4D22NP-120NC | CDRH4D28NP-100NC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 22 µH | 120 µH | 15 µH | 82 µH | 18 µH | 12 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 840 mA | 700 mA | 270 mA | 760 mA | 320 mA | 720 mA | 1.8 A | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | 750mA | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 131.6mOhm Max | 235mOhm Max | 1.27Ohm Max | 149mOhm Max | 914.8mOhm Max | 166mOhm Max | 110.4mOhm Max | 128.3mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.094" (2.40mm) | 0.118" (3.00mm) |
