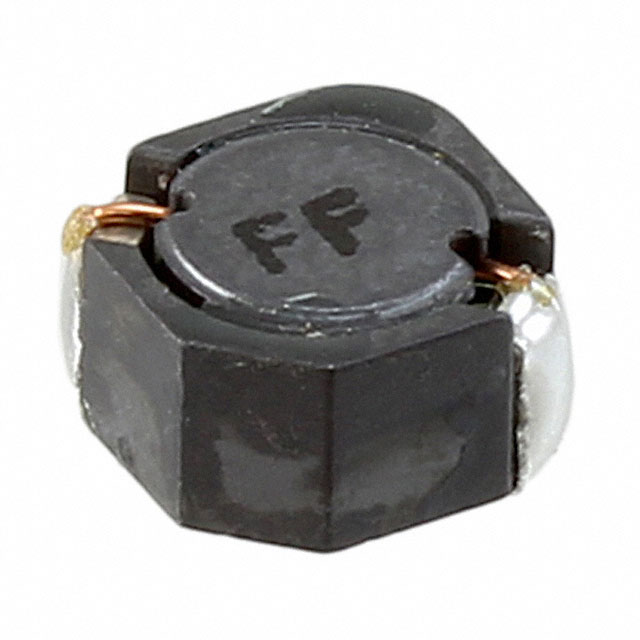

| Part Number | CDRH4D28CLDNP-150PC | CDRH4D28CLDNP-1R0PC | CDRH4D28CLDNP-100PC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 1 µH | 10 µH |
| Tolerance | ±25% | ±25% | ±25% |
| Current Rating (Amps) | 1.6 A | 4.9 A | 1.8 A |
| Current - Saturation (Isat) | 810mA | 3A | 900mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 93.4mOhm Max | 17.5mOhm Max | 67.5mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.193" L x 0.193" W (4.90mm x 4.90mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
