Please send RFQ , we will respond immediately.

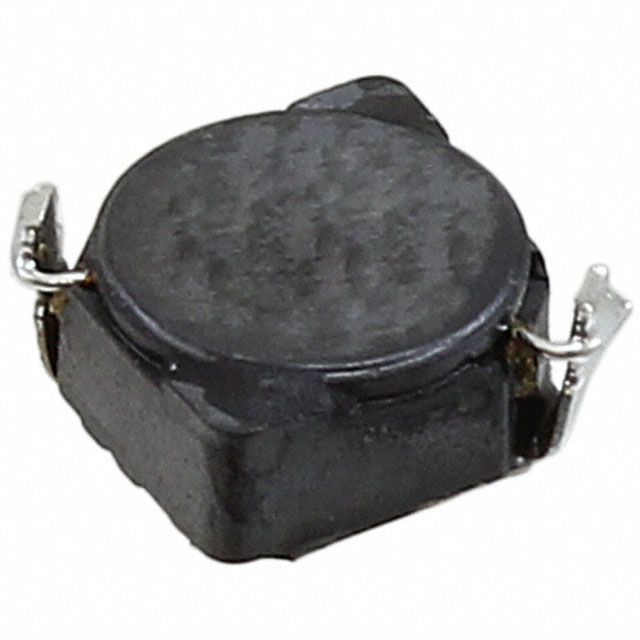

| Part Number | CDRH4D22NP-120NC | CDRH4D28NP-120NC | CDRH4D22NP-121NC | CDRH4D22NP-150NC | CDRH4D22NP-180NC | CDRH4D22NP-220NC | CDRH4D22NP-820NC | CDRH4D22NP-100NC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 12 µH | 120 µH | 15 µH | 18 µH | 22 µH | 82 µH | 10 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.8 A | 840 mA | 520 mA | 1.59 A | 1.41 A | 1.32 A | 580 mA | 1.82 A |
| Current - Saturation (Isat) | 750mA | - | 230mA | 680mA | 600mA | 540mA | 300mA | 800mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 110.4mOhm Max | 131.6mOhm Max | 1.14Ohm Max | 127.4mOhm Max | 168.7mOhm Max | 199.7mOhm Max | 794.6mOhm Max | 102.4mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.118" (3.00mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
