Please send RFQ , we will respond immediately.

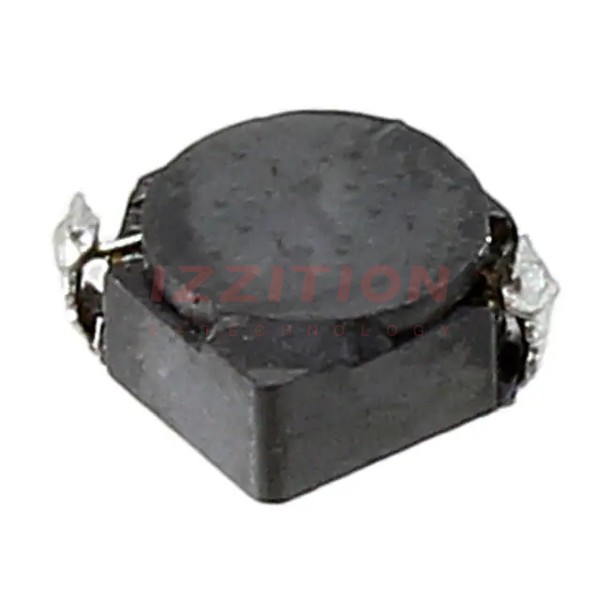

| Part Number | CDRH3D18NP-3R0NC | CDRH3D18NP-1R0NC | CDRH3D18NP-330NC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 3 µH | 1 µH | 33 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.8 A | 2.4 A | 450 mA |
| Current - Saturation (Isat) | 1.6A | 2.8A | 500mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 69mOhm Max | 50mOhm Max | 640mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
