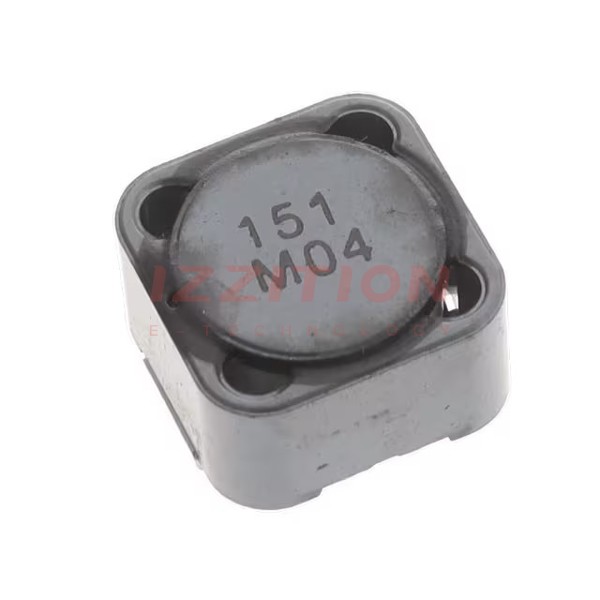

| Part Number | CDRH127L125NP-151MC | CDRH127L125NP-101MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core | Drum Core |
| Material - Core | Ferrite | Ferrite |
| Inductance | 150 µH | 100 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.8 A | 2 A |
| Current - Saturation (Isat) | 2.1A | 2.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 236mOhm Max | 171.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) |
