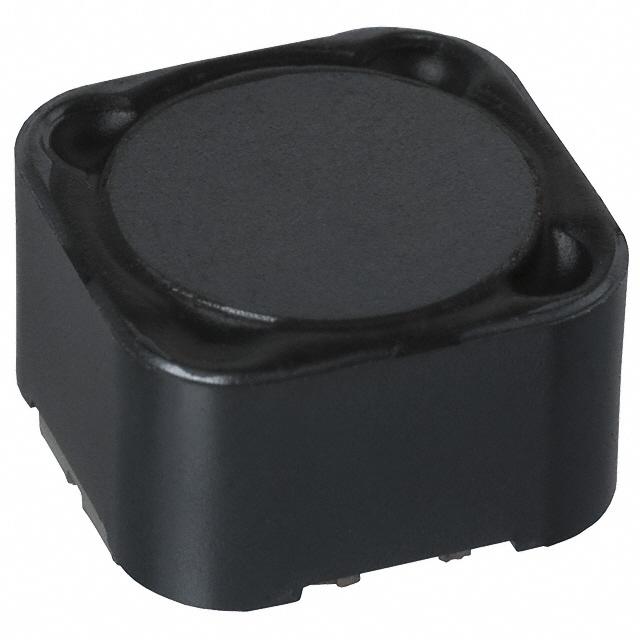

| Part Number | CDRH127-102MC | CDRH127-100MC | CDRH127-101MC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 1 mH | 10 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 550 mA | 5.4 A | 1.7 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.82Ohm Max | 21.6mOhm Max | 220mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
