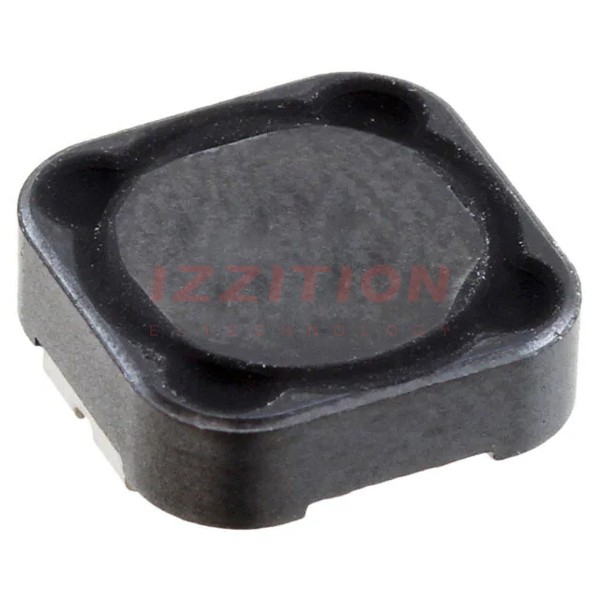

| Part Number | CDRH124NP-560MC | CDRH104NP-560MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | - |
| Inductance | 56 µH | 56 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.8 A | 1 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 190mOhm Max | 230mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.197" (5.00mm) |
