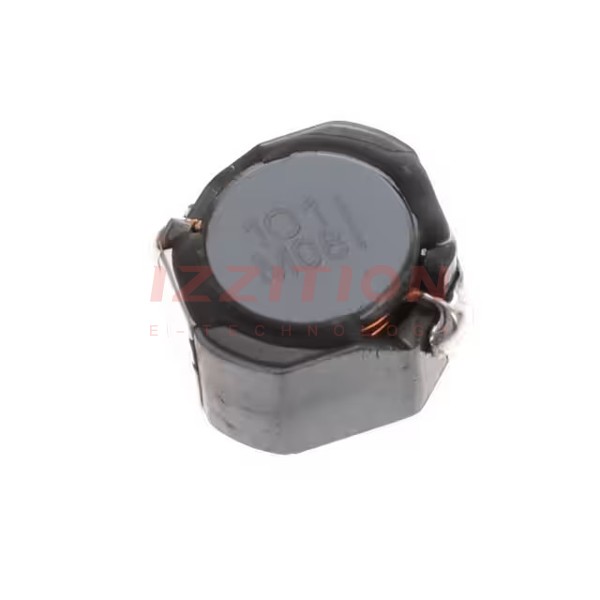

| Part Number | CDRH10D60BT150NP-101MC | CDRH10D60BT150NP-100MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 100 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.3 A | 6.9 A |
| Current - Saturation (Isat) | 1.92A | 6.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 160mOhm | 17mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.406" L x 0.394" W (10.30mm x 10.00mm) |
| Height - Seated (Max) | 0.250" (6.35mm) | 0.250" (6.35mm) |
