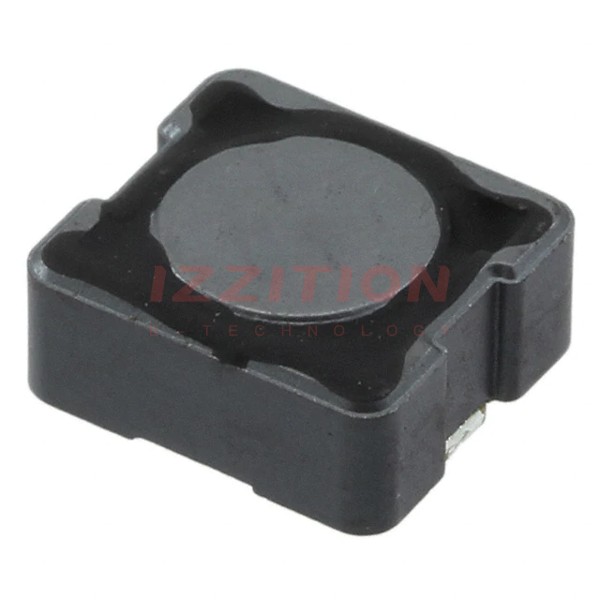

| Part Number | CDRH104RNP-2R5NC | CDRH104RNP-1R5NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | Ferrite |
| Inductance | 2.5 µH | 1.5 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 6.1 A | 6.5 A |
| Current - Saturation (Isat) | 7.5A | 10A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 10.5mOhm Max | 8.1mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
