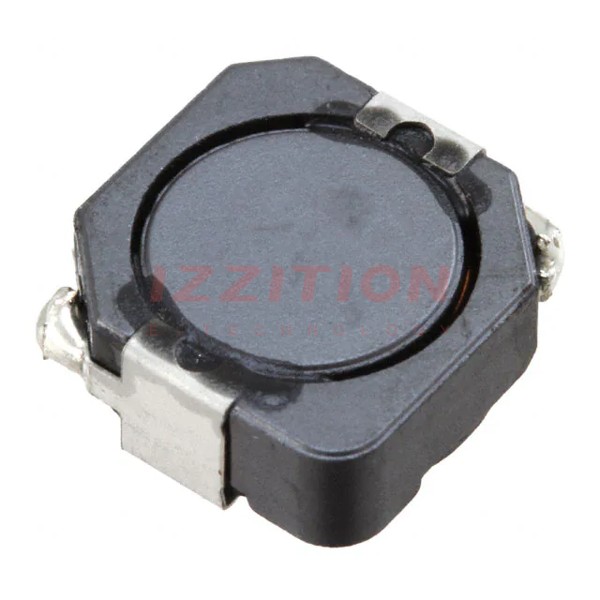

| Part Number | CDRH104RNP-150NC | CDRH105RNP-150NC | CDRH104RNP-151NC | CDRH104RNP-180NC | CDRH104RNP-100NC | CDRH104RNP-120NC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | - | - | Ferrite |
| Inductance | 15 µH | 15 µH | 150 µH | 18 µH | 10 µH | 12 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 3.1 A | 3.4 A | 1.15 A | 1.8 A | 3.8 A | 3.4 A |
| Current - Saturation (Isat) | 3.6A | 3.6A | 1.12A | - | 4.4A | 3.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 50mOhm Max | 41mOhm Max | 506mOhm Max | 84mOhm Max | 35mOhm Max | 46mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 1 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.201" (5.10mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
