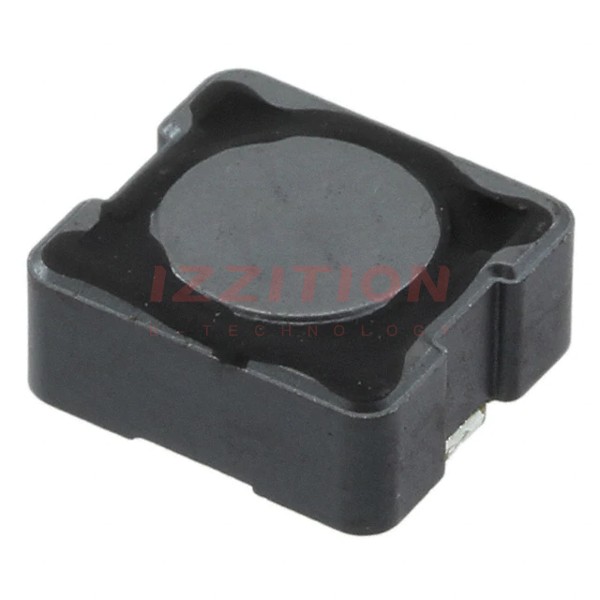

| Part Number | CDRH104NP-391MC | CDRH104NP-331MC | CDRH104NP-390MC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 390 µH | 330 µH | 39 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 390 mA | 430 mA | 1.2 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.55Ohm Max | 1.37Ohm Max | 170mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
