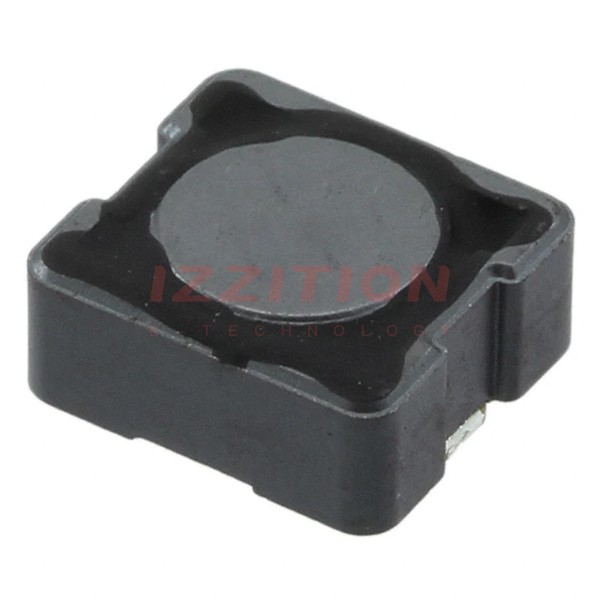

| Part Number | CDRH104NP-120MC | CDRH104NP-121MC | CDRH104NP-150MC | CDRH104NP-180MC | CDRH104NP-220MC | CDRH104NP-820MC | CDRH124NP-120MC | CDRH104NP-100MC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | - | - | - | - | - | - | Ferrite | - |
| Inductance | 12 µH | 120 µH | 15 µH | 18 µH | 22 µH | 82 µH | 12 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.25 A | 700 mA | 2 A | 1.8 A | 1.65 A | 840 mA | 4 A | 2.4 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 54mOhm Max | 450mOhm Max | 61mOhm Max | 84mOhm Max | 94mOhm Max | 360mOhm Max | 38mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 100 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.386" L x 0.350" W (9.80mm x 8.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.177" (4.50mm) | 0.197" (5.00mm) |
