Please send RFQ , we will respond immediately.

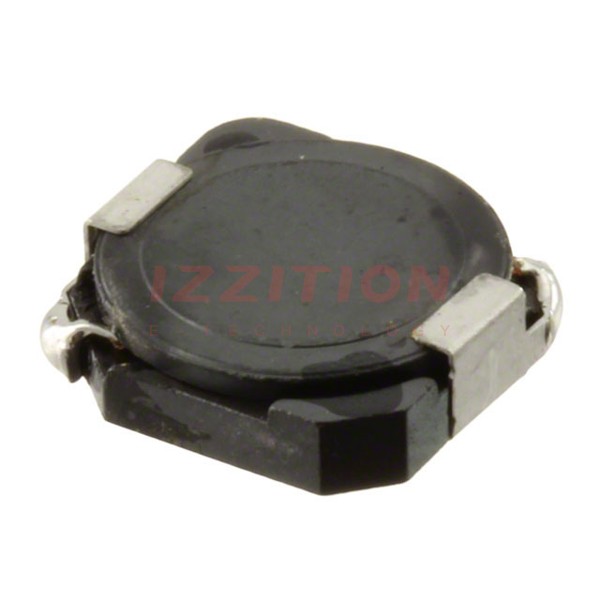

| Part Number | CDRH103RNP-6R8NC-B | CDRH103RNP-0R8NC-B |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 800 nH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 3.6 A | 8.3 A |
| Current - Saturation (Isat) | 3.84A | 11.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 35mOhm Max | 5.7mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) |
