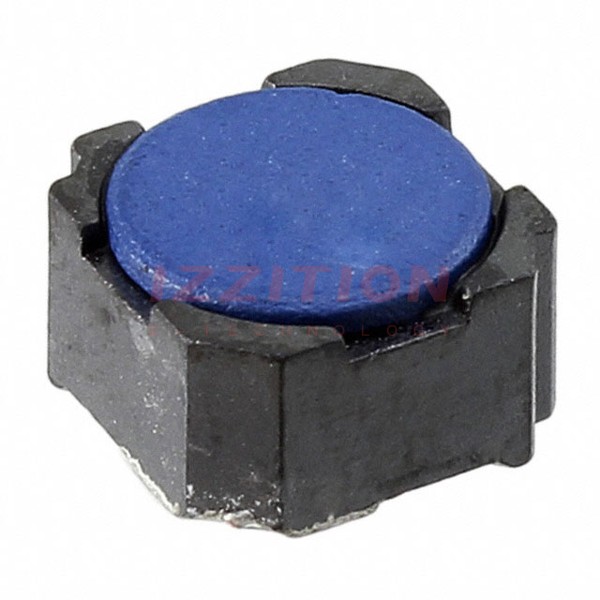

| Part Number | CDR7D43MNNP-330NC | CDR7D43MNNP-390NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 33 µH | 39 µH |
| Tolerance | ±25% | ±25% |
| Current Rating (Amps) | 1.15 A | 1.1 A |
| Current - Saturation (Isat) | 2.3A | 2.1A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 160mOhm Max | 175mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) |
