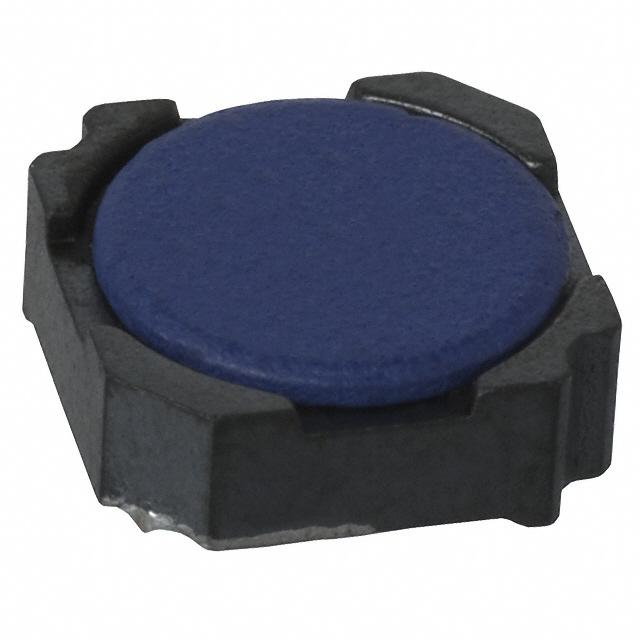

| Part Number | CDR7D28MNNP-4R6NC | CDR7D28MNNP-3R6NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.6 µH | 3.6 µH |
| Tolerance | ±25% | ±25% |
| Current Rating (Amps) | 3.2 A | 3.45 A |
| Current - Saturation (Isat) | 3.3A | 3.55A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 37.5mOhm Max | 32.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
