Please send RFQ , we will respond immediately.

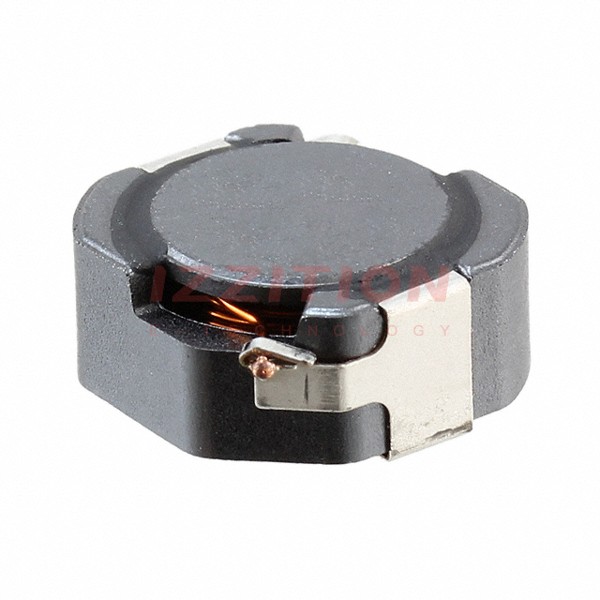

| Part Number | CDR6D28MNNP-5R5NC | CDR6D28MNNP-6R5NC | CDR6D28MNNP-1R5NC | CDR6D28MNNP-4R5NC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 5.5 µH | 6.5 µH | 1.5 µH | 4.5 µH |
| Tolerance | ±25% | ±25% | ±25% | ±25% |
| Current Rating (Amps) | 2.2 A | 2.1 A | 3 A | 2.4 A |
| Current - Saturation (Isat) | 3.15A | 3.05A | 5.9A | 3.55A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 63.8mOhm Max | 70mOhm Max | 31.5mOhm Max | 57.5mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
