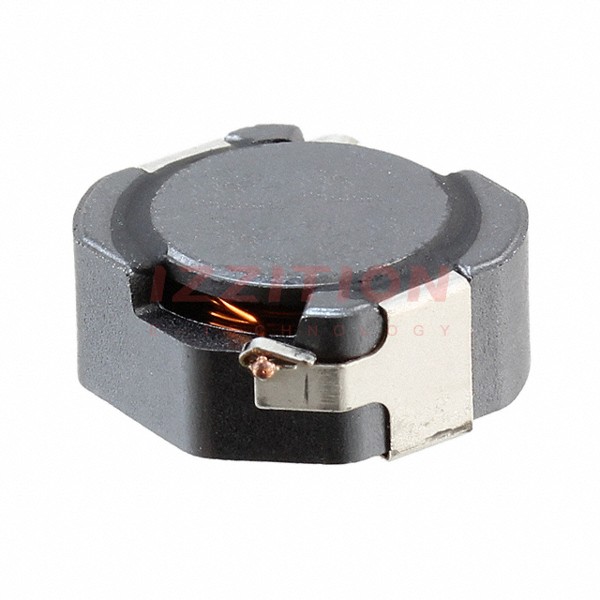

| Part Number | CDR6D28MNNP-2R0NC | CDR7D28MNNP-2R0NC | CDR6D28MNNP-9R0NC | CDR6D28MNNP-2R7NC | CDR6D23MNNP-2R0NC | CDR6D28MNNP-220NC | CDR6D28MNNP-270NC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2 µH | 2 µH | 9 µH | 2.7 µH | 2 µH | 22 µH | 27 µH |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Current Rating (Amps) | 2.9 A | 3.95 A | 1.9 A | 2.7 A | 2.6 A | 1.1 A | 980 mA |
| Current - Saturation (Isat) | 4.75A | 4.55A | 2.6A | 4.3A | 3.85A | 1.65A | 1.45A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 37.5mOhm Max | 23.8mOhm Max | 82.5mOhm Max | 43.8mOhm Max | 36.3mOhm Max | 198.8mOhm Max | 231.2mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.098" (2.50mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
