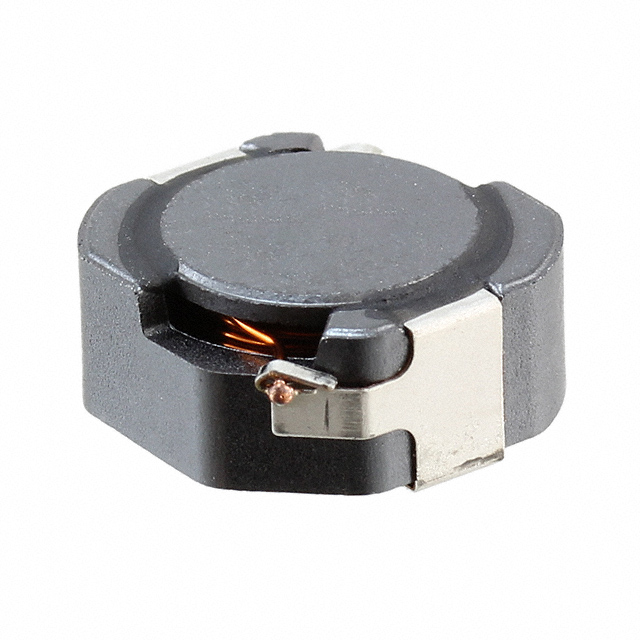

| Part Number | CDR6D28MNNP-150NC | CDR7D28MNNP-150NC | CDR6D28MNNP-180NC | CDR6D23MNNP-150NC | CDR6D28MNNP-100NC | CDR6D28MNNP-120NC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 18 µH | 15 µH | 10 µH | 12 µH |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% | ±25% |
| Current Rating (Amps) | 1.4 A | 2 A | 1.3 A | 1.1 A | 1.8 A | 1.5 A |
| Current - Saturation (Isat) | 2.1A | 2.1A | 1.75A | 1.4A | 2.5A | 2.3A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 135mOhm Max | 81.3mOhm Max | 150mOhm Max | 133.8mOhm Max | 88.8mOhm Max | 120mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.098" (2.50mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
