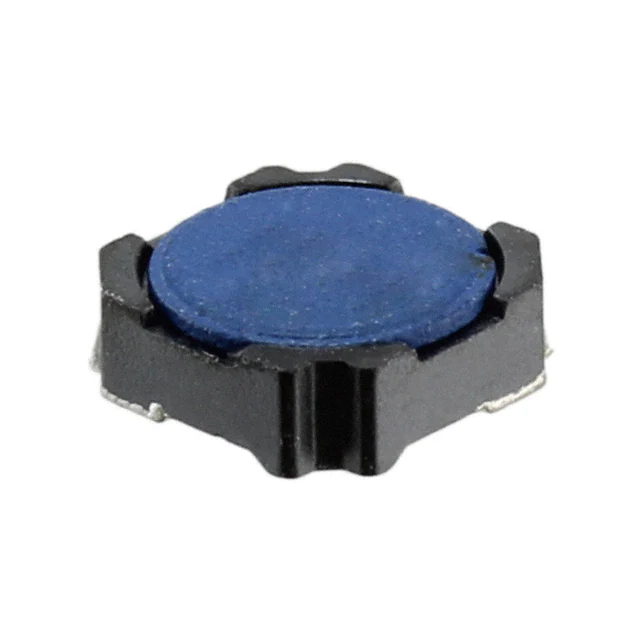

| Part Number | CDR6D23MNNP-6R1NC | CDR6D23MNNP-5R1NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.1 µH | 5.1 µH |
| Tolerance | ±25% | ±25% |
| Current Rating (Amps) | 1.8 A | 1.9 A |
| Current - Saturation (Isat) | 2.3A | 2.45A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 66.3mOhm Max | 60mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) |
