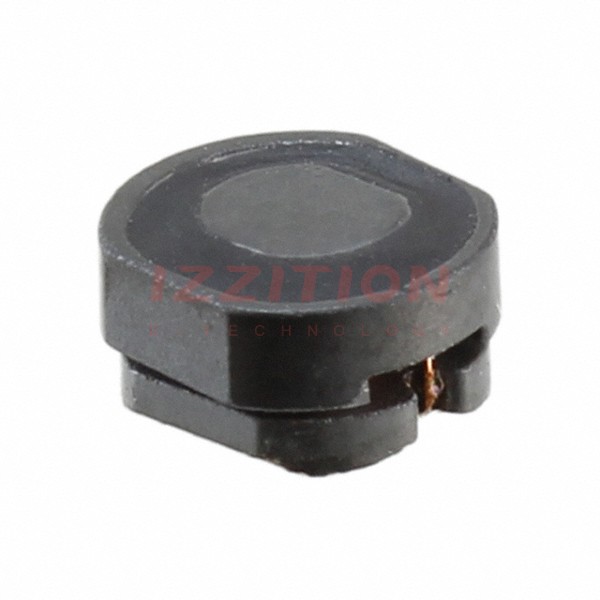

| Part Number | CDR63BNP-330LC | CDR63BNP-390LC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 33 µH | 39 µH |
| Tolerance | ±15% | ±15% |
| Current Rating (Amps) | 610 mA | 530 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 410mOhm Max | 470mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 18.2MHz | 17MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | - | - |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.244" L x 0.220" W (6.20mm x 5.60mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) |
