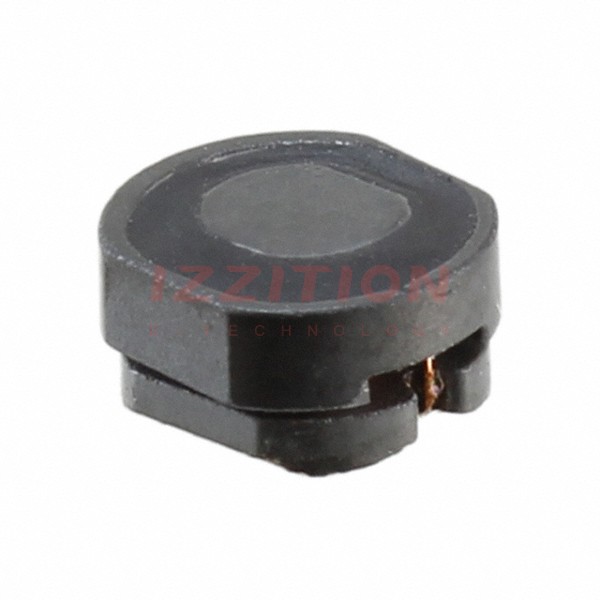

| Part Number | CDR63BNP-180MC | CDR63BNP-100MC | CDR63BNP-120MC | CDR63BNP-150MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | - | - | - |
| Material - Core | - | - | - | - |
| Inductance | 18 µH | 10 µH | 12 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 780 mA | 1 A | 940 mA | 860 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 250mOhm Max | 140mOhm Max | 160mOhm Max | 180mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 26.7MHz | 35.3MHz | 32.2MHz | 29.3MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | - | 2.52 MHz | - | - |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.244" L x 0.220" W (6.20mm x 5.60mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
