Please send RFQ , we will respond immediately.

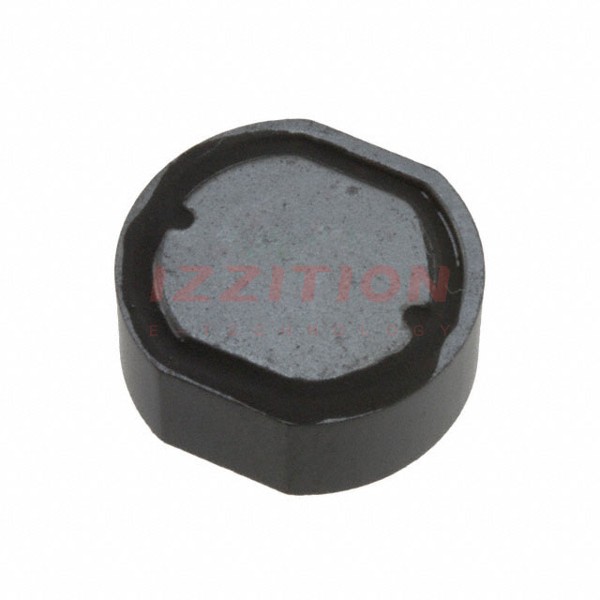

| Part Number | CDR125NP-821MC | CDR125NP-121MC | CDR125NP-221MC | CDR125NP-820MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Obsolete | Obsolete | Active |
| Type | - | - | - | - |
| Material - Core | - | - | - | - |
| Inductance | 820 µH | 120 µH | 220 µH | 82 µH |
| Tolerance | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% |
| Current Rating (Amps) | 360 mA | 950 mA | 700 mA | 1.14 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2Ohm Max | 280mOhm Max | 520mOhm Max | 200mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 2.42MHz | 6.34MHz | 4.51MHz | 7.85MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) |
| Height - Seated (Max) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) |
