Please send RFQ , we will respond immediately.

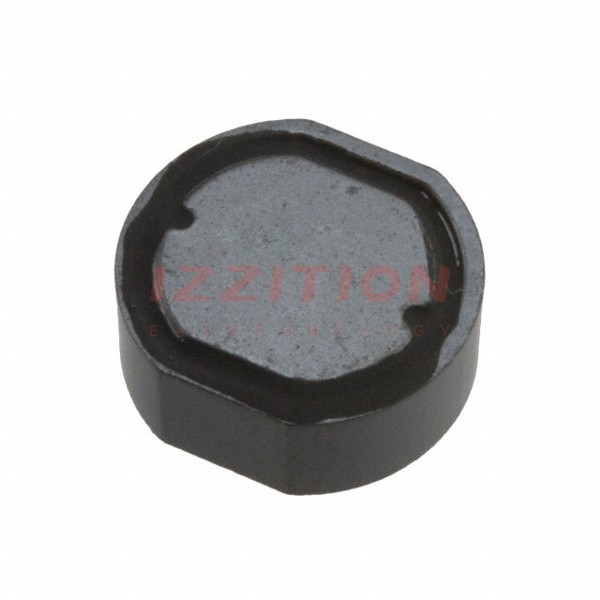

| Part Number | CDR125NP-471MC | CDR105NP-471MC | CDR125NP-271MC | CDR125NP-470MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Active | Active | Obsolete |
| Type | - | - | - | - |
| Material - Core | - | - | - | - |
| Inductance | 470 µH | 470 µH | 270 µH | 47 µH |
| Tolerance | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% |
| Current Rating (Amps) | 480 mA | 370 mA | 630 mA | 1.5 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.2Ohm Max | 1.6Ohm Max | 700mOhm Max | 120mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 3.25MHz | 3.6MHz | 4.37MHz | 10.4MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) |
| Height - Seated (Max) | 0.232" (5.90mm) | 0.217" (5.50mm) | 0.232" (5.90mm) | 0.232" (5.90mm) |
