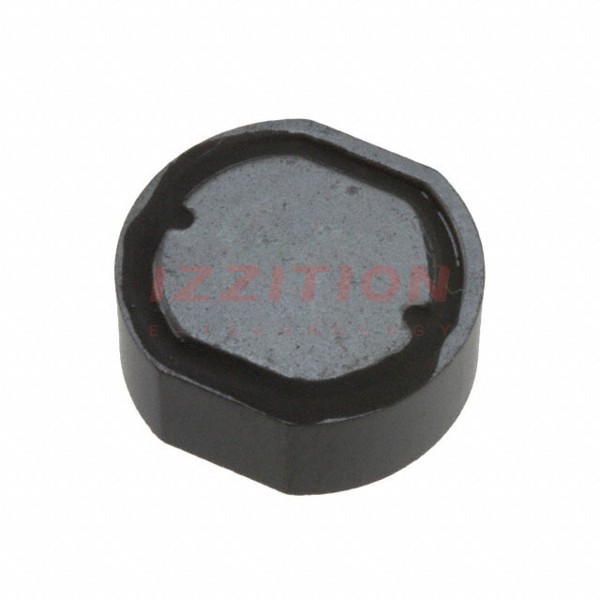

| Part Number | CDR125NP-390MC | CDR125NP-391MC | CDR105NP-390MC | CDR125NP-330MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Type | - | - | - | - |
| Material - Core | - | - | - | - |
| Inductance | 39 µH | 390 µH | 39 µH | 33 µH |
| Tolerance | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% |
| Current Rating (Amps) | 1.65 A | 520 mA | 1.28 A | 1.8 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 110mOhm Max | 1.08Ohm Max | 160mOhm Max | 100mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 11.6MHz | 3.55MHz | 15MHz | 12.8MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 1 kHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) |
| Height - Seated (Max) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.217" (5.50mm) | 0.232" (5.90mm) |
