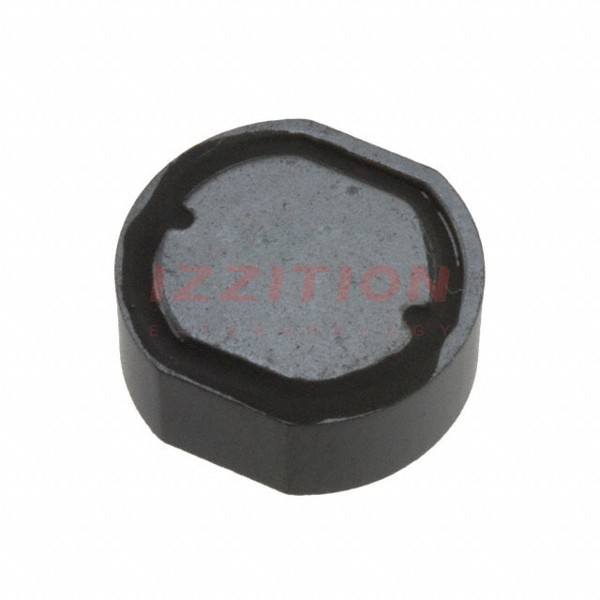

| Part Number | CDR125NP-220MC | CDR125NP-270MC | CDR125NP-820MC | CDR125NP-221MC | CDR105NP-220MC | CDR125NP-120MC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Active |
| Type | - | - | - | - | - | - |
| Material - Core | - | - | - | - | - | - |
| Inductance | 22 µH | 27 µH | 82 µH | 220 µH | 22 µH | 12 µH |
| Tolerance | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% | ±20% |
| Current Rating (Amps) | 2.2 A | 2 A | 1.14 A | 700 mA | 1.71 A | 2.5 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 70mOhm Max | 80mOhm Max | 200mOhm Max | 520mOhm Max | 90mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 15.2MHz | 13.9MHz | 7.85MHz | 4.51MHz | 21MHz | 21.2MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 1 kHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) |
| Height - Seated (Max) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.217" (5.50mm) | 0.232" (5.90mm) |
