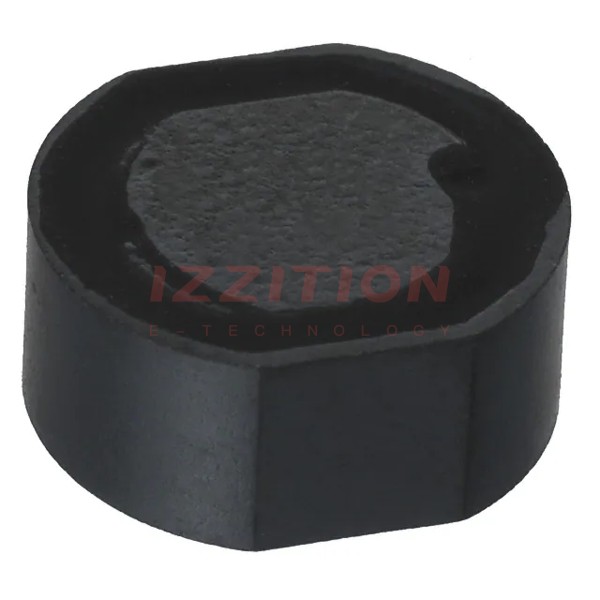

| Part Number | CDR105NP-150MC | CDR105NP-180MC | CDR125NP-150MC | CDR105NP-151MC | CDR105NP-100MC | CDR105NP-120MC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| Type | - | - | - | - | - | - |
| Material - Core | - | - | - | - | - | - |
| Inductance | 15 µH | 18 µH | 15 µH | 150 µH | 10 µH | 12 µH |
| Tolerance | -15%, +20% | -15%, +20% | ±20% | -15%, +20% | -15%, +20% | -15%, +20% |
| Current Rating (Amps) | 2.06 A | 1.89 A | 2.45 A | 650 mA | 2.53 A | 2.31 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 70mOhm Max | 80mOhm Max | 60mOhm Max | 450mOhm Max | 60mOhm Max | 60mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 27MHz | 26MHz | 18.9MHz | 5.8MHz | 31MHz | 27MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 1 kHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.232" (5.90mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
