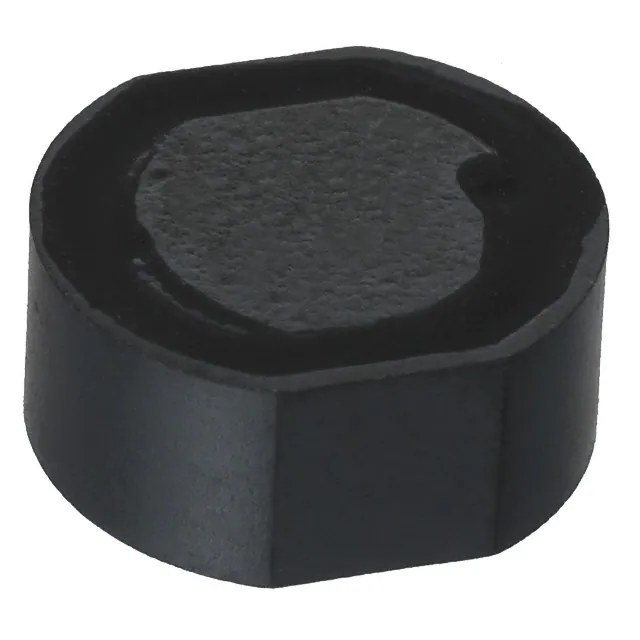

| Part Number | CDR105-471MC | CDR105-271MC | CDR105-470MC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 470 µH | 270 µH | 47 µH |
| Tolerance | -15%, +20% | -15%, +20% | -15%, +20% |
| Current Rating (Amps) | 370 mA | 490 mA | 1.17 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.6Ohm Max | 780mOhm Max | 180mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 3.6MHz | 4.6MHz | 14MHz |
| Ratings | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
