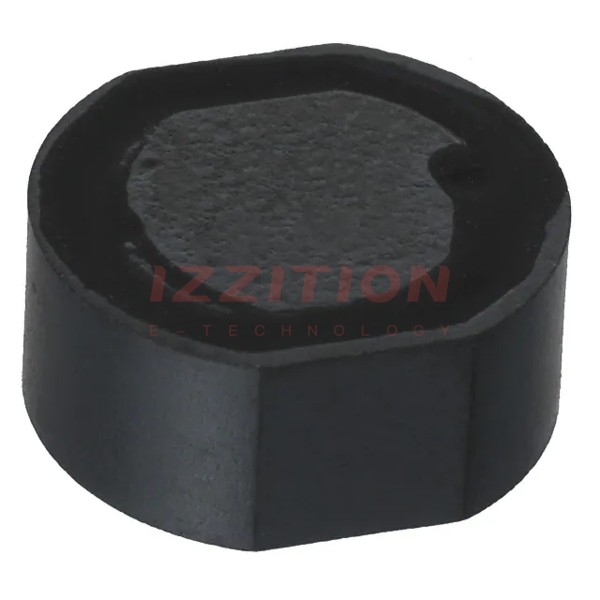

| Part Number | CDR105-220MC | CDR125-220MC | CDR105-270MC | CDR105-820MC | CDR105-221MC | CDR105-120MC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | - | - | - | - | - |
| Material - Core | - | - | - | - | - | - |
| Inductance | 22 µH | 22 µH | 27 µH | 82 µH | 220 µH | 12 µH |
| Tolerance | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% |
| Current Rating (Amps) | 1.71 A | 2.2 A | 1.54 A | 880 mA | 540 mA | 2.31 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 90mOhm Max | 70mOhm Max | 110mOhm Max | 280mOhm Max | 690mOhm Max | 60mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 21MHz | 15.2MHz | 18MHz | 10MHz | 5.2MHz | 27MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.232" (5.90mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
