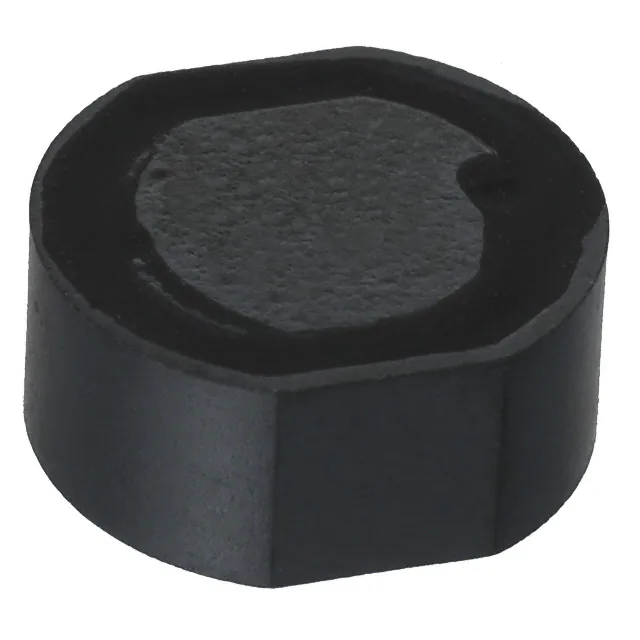

| Part Number | CDR105-100MC | CDR125-100MC | CDR105-120MC | CDR105-150MC | CDR105-180MC | CDR105-101MC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | - | - | - | - | - |
| Material - Core | - | - | - | - | - | - |
| Inductance | 10 µH | 10 µH | 12 µH | 15 µH | 18 µH | 100 µH |
| Tolerance | -15%, +20% | ±20% | -15%, +20% | -15%, +20% | -15%, +20% | -15%, +20% |
| Current Rating (Amps) | 2.53 A | 2.65 A | 2.31 A | 2.06 A | 1.89 A | 800 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 60mOhm Max | 50mOhm Max | 60mOhm Max | 70mOhm Max | 80mOhm Max | 350mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 31MHz | 24.2MHz | 27MHz | 27MHz | 26MHz | 7MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.232" (5.90mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
