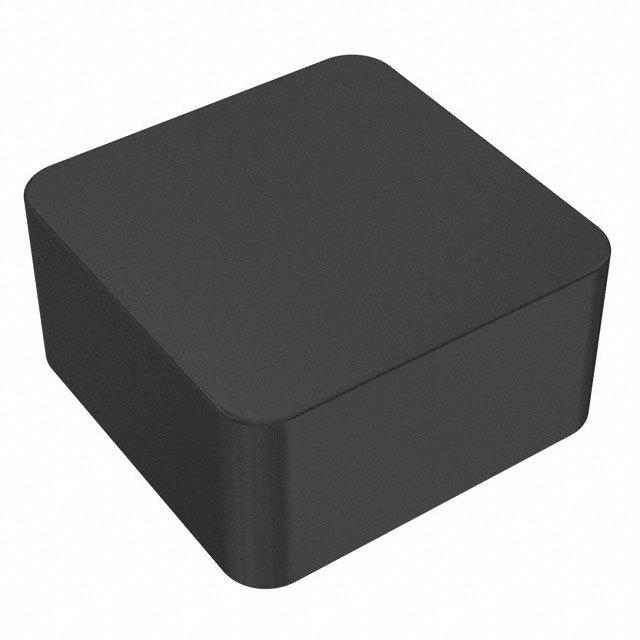

| Part Number | CDMT40D30HF-3R3NC | CDMT40D20HF-3R3NC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 4.3 A | 3 A |
| Current - Saturation (Isat) | 5.4A | 4.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 23mOhm | 46.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.163" L x 0.163" W (4.15mm x 4.15mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.083" (2.10mm) |
