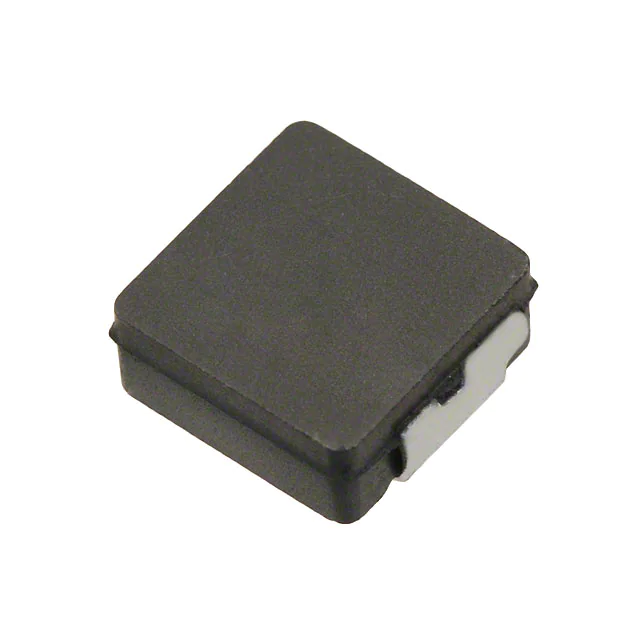

| Part Number | CDMC6D28NP-R68MC | CDMC8D28NP-R68MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | Molded |
| Material - Core | Metal Composite | Metal |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 12.1 A | 15.4 A |
| Current - Saturation (Isat) | 11.3A | 16A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 5.4mOhm Max | 4.6mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.374" L x 0.335" W (9.50mm x 8.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
