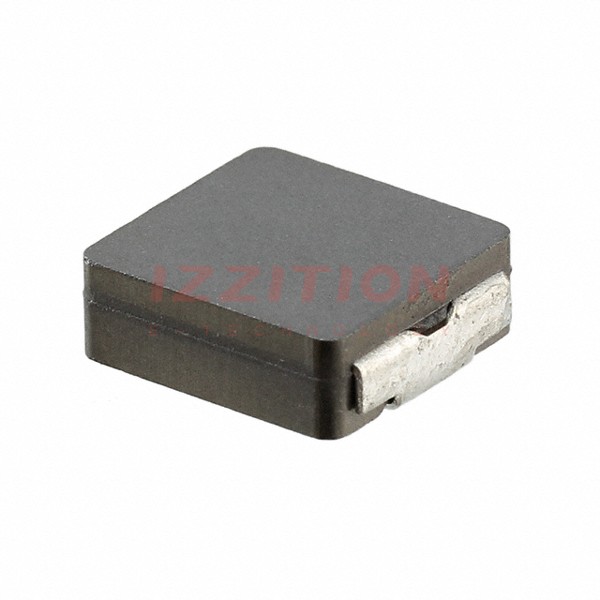

| Part Number | CDMC104NP-R36M | CDMC104NP-R56M |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 360 nH | 560 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 25 A | 21 A |
| Current - Saturation (Isat) | 28A | 22A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.1mOhm | 1.48mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
